Compact silicone sheets

PDF file
Compact silicone sheets

At MEREFSA, we have a permanent stock of compact silicone sheets and plates, available in thicknesses ranging from 0.3 mm to 15 mm in rolls of 1,200 mm in width. We also offer other formats and dimensions upon request, adapting to the specific needs of each customer.

Perfiles de Silicona Esponja

Product Information


In MEREFSA, we manufacture standard 60 Shore A compact silicone in translucent color, with the option to produce molded plates of 500 mm x 500 mm, in thicknesses from 1 mm to 30 mm and hardness from 20 to 80 Shore A. We have a wide range of colors, including custom RAL shades starting from 50 kg, as well as luminescent, fluorescent, and metallic options.


We maintain a permanent stock of calendered compact silicone sheets in translucent, white, tile red, blue, and black, with a width of 1,200 mm and thicknesses from 0.3 mm to 12 mm in 40 and 60 Shore A. Upon request, we offer versions in 50 and 70 Shore A, along with other colors and qualities. Additionally, we manufacture silicone sheets with different types of base:


  • Standard insulating silicone (MVQ)
  • Conductive silicone
  • Steam silicone
  • Fluorosilicone (FVMQ)
  • Silicone for very high temperatures (THT)
  • Silicone for very low temperatures (PMVQ)
  • Platinum-cured silicone
  • FDA food contact compliant silicone
  • BgVV (recommendation XV)
  • Medical grade silicone with USP class VI
  • High-temperature standard sponge silicones
  • Food contact compliant sponge silicones

The usual lead time for compact silicone sheets that we do not have in stock is 2 to 3 weeks, but we create schedules for materials that are common in your industry, allowing us to supply them on immediate timelines.

Perfiles de Silicona Esponja

Applications


The main applications of compact silicone sheets include various cutting processes for the manufacture of sealing gaskets, die-cut flat gaskets and silicone flat gaskets suitable for food contact. It is also used as a vacuum membrane in the laminating industry with various materials and in the manufacture of high-temperature resistant conveyor belts, such as those used in shrink ovens. Additionally, it is ideal for non-stick coatings on various surfaces, such as baking sheets in the food industry. It is also used in the cutting of silicone rectangular profiles for welding applications and as a high-temperature resistant support in textile stamping processes.

Online Stock Table


Stock availability of Compact Silicone Sheet

High Transparency Translucent Red White Blue Black
Hardness: 60-No Talcum 40 50 60 60 40 60 60 HT 60 60 60 40 60
Width: 1200 mm 1200 mm 1200 mm 1200 mm 1500 mm 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm
Type: FDA FDA FDA FDA FDA FDA FDA 280°C FDA FDA Detectable FDA FDA
Compact silicone sheet Available
Regularly available but currently out of stock
0,3 mm n/a n/a n/a n/a n/a n/a n/a n/a
0,5 mm n/a n/a
0,8 mm n/a n/a n/a n/a n/a
1,0 mm
1,5 mm n/a
2,0 mm
2,5 mm n/a n/a n/a
3,0 mm
4,0 mm
5,0 mm
6,0 mm
8,0 mm n/a n/a n/a
10,0 mm n/a n/a n/a n/a
12,0 mm n/a n/a n/a n/a
15,0 mm n/a n/a n/a n/a n/a n/a n/a

Images


Planchas de silicona compacta

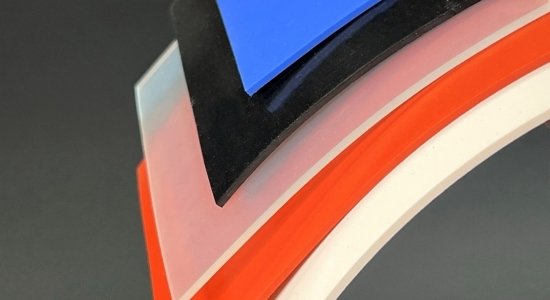

Silicone sheets
Planchas de silicona compacta
Silicone sheets
Planchas de Silicona Compacta
Silicone sheets
Planchas de Silicona Compacta
Silicone sheets
