PTFE impregnated Glass Fabric Coils
- Product Information
- Main fabrics impregnated with PTFE
- Online Stock Table
- Images
- Available Products
At MEREFSA, we market the highest quality fiberglass fabrics and meshes, impregnated with PTFE and/or aramid. These materials have been treated with multiple layers of PTFE, ensuring a uniform thickness and excellent mechanical, thermal, and chemical resistance.
Thanks to their advanced properties, these fabrics and meshes are ideal for demanding industrial applications, offering a combination of durability, flexibility, and resistance to high temperatures.
Product Information
We maintain a permanent stock of the highest quality PTFE-impregnated fabrics, available in thicknesses of 0.08 mm, 0.13 mm, 0.16 mm, and 0.25 mm, offered in both standard fabric and adhesive-coated versions.
We are capable of supplying PTFE-impregnated fiberglass fabrics in widths of up to 3,300 mm, although the most common format is 1,000 mm wide in rolls of 30 linear meters, ensuring versatility and immediate availability for a wide range of industrial applications.
Main fabrics impregnated with PTFE
- PTFE-impregnated fiberglass fabrics, both standard and with silicone adhesive (+240 ºC)
- PTFE-impregnated porous fiberglass fabrics
- Chemically treated fabrics on one side for adhesive bonding
- PTFE-impregnated aramid fabrics
- Silanized fiberglass fabrics
- Custom-impregnated fabrics based on customer requirements (PTFE or silicone)
Online Stock Table
| (Price valid for complete coils) | |||||||||||
| Do not hesitate to contact our commercial department to request other measures. | |||||||||||
| Refernece | Type | Thickness | Widht(mm) | Weight(gr/m²) | Tearing(N/5cm) | Content with PTFE (%) | Price(EUR) | Online Stock(m²) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TVTN08M1000 | Normal | 0.075 | 1000 | 135 | 800 | 64 | TDS | SDS | |||
| TVTN13M1000 | Normal | 0.115 | 1000 | 255 | 1200 | 58 | TDS | SDS | |||
| TVTN16M1000 | Normal | 0.130 | 1000 | 276 | 1200 | 60 | TDS | SDS | |||
| TVTN25M1000 | Normal | 0.220 | 1000 | 350 | 2300 | 43 | TDS | SDS | |||
| (Price valid for complete coils) | ||||||||||||
| Do not hesitate to contact our commercial department to request other measures. | ||||||||||||
| Reference | Type | Thickness | Width | Weight | Adhesive | Tearing | PTFE | Price | Online Stock (m²) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fabricatiob | Total | (mm) | (gr/m²) | (N/cm) | (N/5cm) | (%) | (EUR) | |||||
| TVTA08M1000 | Adhesive | 0.075 | 0.125 | 1000 | 135 | 4.40 | 800 | 64 | TDS | SDS | ||
| TVTA13M1000 | Adhesive | 0.125 | 0.175 | 1000 | 255 | 5.40 | 1200 | 58 | TDS | SDS | ||
| TVTA16M1000 | Adhesive | 0.140 | 0.190 | 1000 | 276 | 5.60 | 1200 | 60 | TDS | SDS | ||
| TVTA25M1000 | Adhesive | 0.220 | 0.270 | 1000 | 455 | 6.00 | 2300 | 43 | TDS | SDS | ||

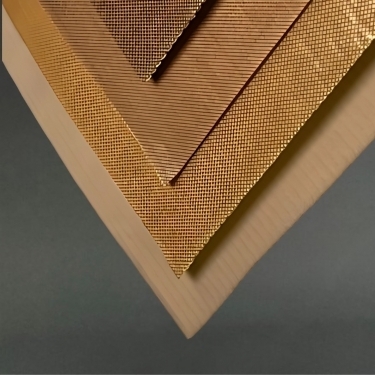

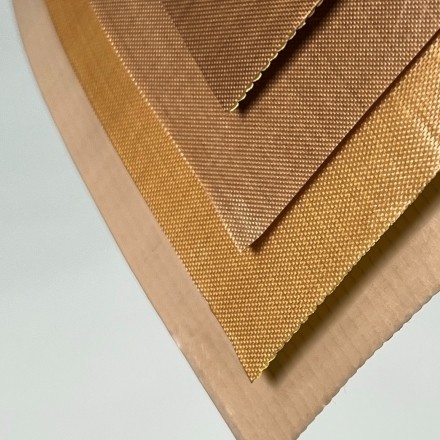

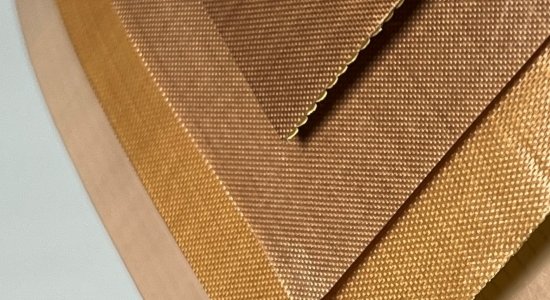

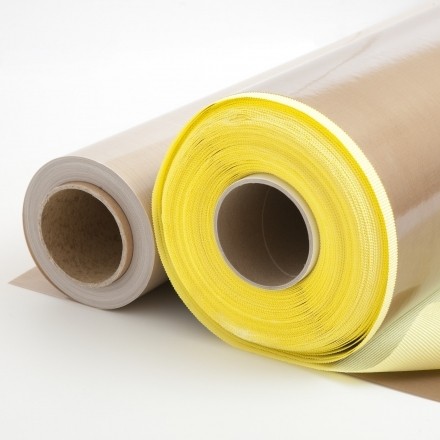

Images
-
M² PTFE COATED GLASS FABRIC 0,08 mm X 1000 mm
| On request | P.V.P.: 13,98 € / U (VAT not included) | Term: Request | Ref. TVTN08M1000
SHOPOn request -
M² PTFE COATED GLASS FABRIC 0,13 mm X 1000 mm
| Stock: 330 U | P.V.P.: 21,80 € / U (VAT not included) | Term: 1/3 days | Ref. TVTN13M1000
SHOPStock: 330 U -
M² PTFE COATED GLASS FABRIC 0,16 mm X 1000 mm
| Stock: 772 U | P.V.P.: 24,09 € / U (VAT not included) | Term: 1/3 days | Ref. TVTN16M1000
SHOPStock: 772 U -
M² PTFE COATED GLASS FABRIC 0,25 mm X 1000 mm
| Stock: 120 U | P.V.P.: 37,03 € / U (VAT not included) | Term: 1/3 days | Ref. TVTN25M1000
SHOPStock: 120 U -
M² PTFE COATED GLASS FABRIC ADHESIVE 0,08 mm X 1000 mm
| Stock: 120 U | P.V.P.: 28,82 € / U (VAT not included) | Term: 1/3 days | Ref. TVTA08M1000
SHOPStock: 120 U -
M² PTFE COATED GLASS FABRIC ADHESIVE 0,13 mm X 1000 mm
| Stock: 930 U | P.V.P.: 36,48 € / U (VAT not included) | Term: 1/3 days | Ref. TVTA13M1000
SHOPStock: 930 U -
M² PTFE COATED GLASS FABRIC ADHESIVE 0,16 mm X 1000 mm
| Stock: 110 U | P.V.P.: 45,89 € / U (VAT not included) | Term: 1/3 days | Ref. TVTA16M1000
SHOPStock: 110 U -
M² PTFE COATED GLASS FABRIC ADHESIVE 0,25 mm X 1000 mm
| Stock: 30 U | P.V.P.: 55,18 € / U (VAT not included) | Term: 1/3 days | Ref. TVTA25M1000
SHOPStock: 30 U
On request
If the product is not available, please indicate the features you need ...
